Prep Guard Column Cartridge, RP C4, 5um, 100A. 21.2mm ID x 10mm Length. Cogent Brand. 1 EA. Special Order Item.
Additional Information:
Cogent RP C4™ Prep Guard Column Cartridges are designed to protect valuable preparative HPLC columns from particulates, strongly retained compounds, and sample contaminants that can reduce column performance and shorten column life. Packed with the same RP C4™ stationary phase used in Cogent preparative columns, these cartridges help maintain method consistency while extending the service life of preparative columns. The stationary phase consists of a four-carbon butyl ligand bonded to ultra-high purity silica and is fully double end capped for reproducible reversed-phase performance.

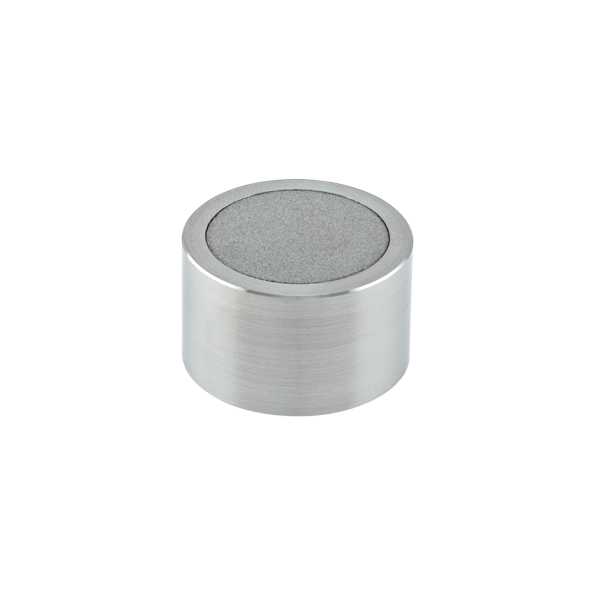

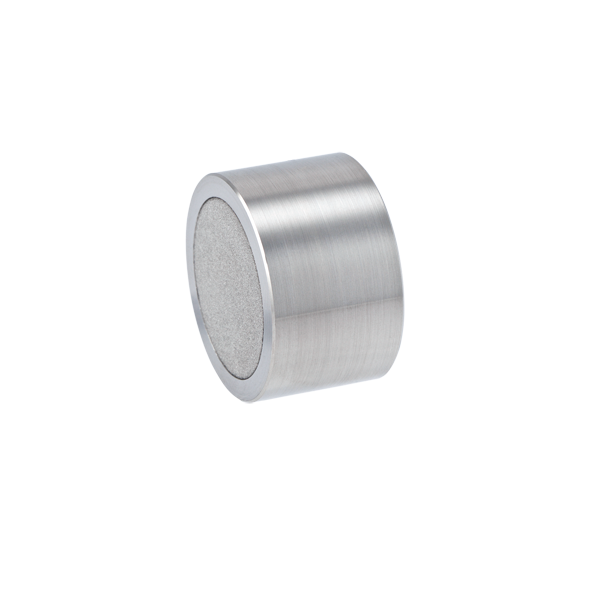

68504-P21-PG1 is a preparative guard column cartridge packed with 5 µm RP C4™ particles featuring a 100 Å pore size in a 21.2 mm ID x 10 mm format. Designed specifically to protect Cogent RP C4™ preparative columns, the cartridge captures particulates and contaminants before they reach the analytical bed. Constructed from a stainless steel tube with stainless steel frits, it provides durability and reliable performance in demanding preparative HPLC applications.
This guard column cartridge is particularly useful for preparative purification of hydrophobic and neutral compounds in pharmaceutical, chemical, and research laboratories. Routine replacement of guard cartridges helps maintain preparative column performance, preserve chromatographic efficiency, and reduce overall operating costs associated with preparative separations.
Key Benefits
RP C4™ stationary phase
USP L26 equivalent chemistry
Butyl (C4) bonded phase
Fully double end capped
Ultra-high purity silica support
Protects preparative columns from contamination
Extends preparative column lifetime
Maintains chromatographic performance
5 µm particle size
Durable stainless steel construction
Typical Applications
Preparative HPLC
Compound purification
Fraction collection
Pharmaceutical purification
Hydrophobic compound purification
Neutral compound purification
Process development
Method development
Research and development
Preparative column protection
Specifications
Product Type: Preparative Guard Column Cartridge
Stationary Phase: RP C4™
USP Classification: L26
Chromatography Mode: Reversed Phase
Bonded Phase: Butyl (C4)
Endcapping: Fully Double End Capped
Particle Size: 5 µm
Pore Size: 100 Å
Cartridge Dimensions: 21.2 mm ID x 10 mm
Construction: Stainless Steel Tube with Stainless Steel Frits
Brand: Cogent
Special Order Item Information
Important Notes
Designed to protect Cogent RP C4™ preparative columns from particulates and contaminants
Helps extend preparative column service life
Maintains preparative column efficiency and performance
Suitable for preparative reversed-phase HPLC applications
Constructed with durable stainless steel hardware
A specialized preparative HPLC system is required for use with 21.2 mm ID columns
A 21.2 mm ID Prep Guard Column Holder (83000-P21-GH) is required for use with this guard column cartridge
This is a Special Order Item
